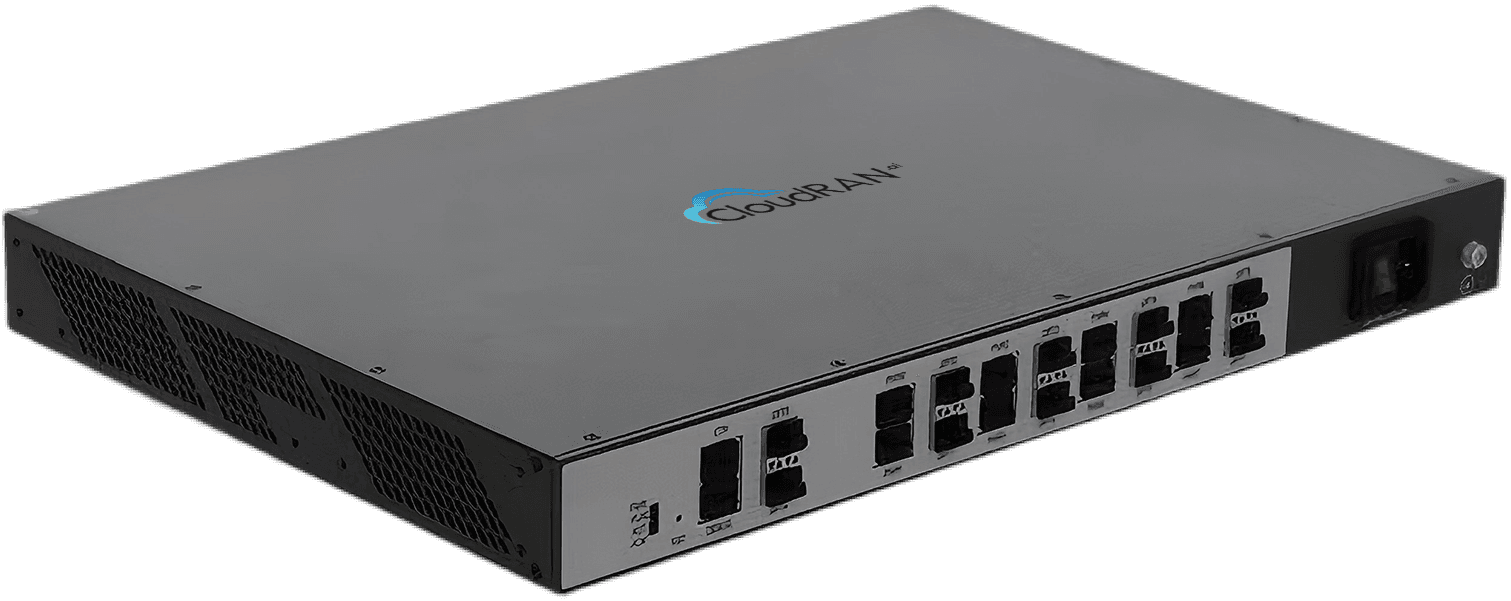

Indoor Hub Expansion Unit
· Up to 8 pRRU are supported
· Provide power supply to pRRU with photoelectric composite cable
· Support two layers cascade of rHUBs
· Realize uplink signal centralizing and uplink signal broadcast of pRRUs
· Remote monitor, operate, software upgrade and manage by NMS
· Realizing 4G, 5G, or 4G+5G network coverage
Features
Power Supply
90~264VAC, 47~63Hz
Power Consumption
Typical 45W, maximum 55W
DC 54V Output Power
8 x 100W
Upward /Cascaded
2 x SFP28 with 25Gbps (redundant 2 x SFP28, future software release)
Downward
8xSFP+ with 10 Gbps
Mgmt. Interface
One RJ-45 Ethernet interface (1FE); One RJ-45 interface (1 RS232)
Cascading Level
Maximum 2 rHUBs for cascading
Remote Distance
200 meters of photoelectric composite cable
Dimensions (HxWxD)
1.73 x 17.3 x 9.8 inches;44 x 440 x 250 millimeters (Standard 19 inches cabinet )
Weight
11.0lbs / 5kg
rHUB Distribution
2NR (4T4R) + 2LTE (2T2R);
4NR (2T2R) + 2LTE (2T2R)
MTBF
≥ 15,000hours
MTTR
≤ 1 hour
Operating Temperature
23°F to 113°F / -5°C to 45°C
Humidity
5% to 95%
